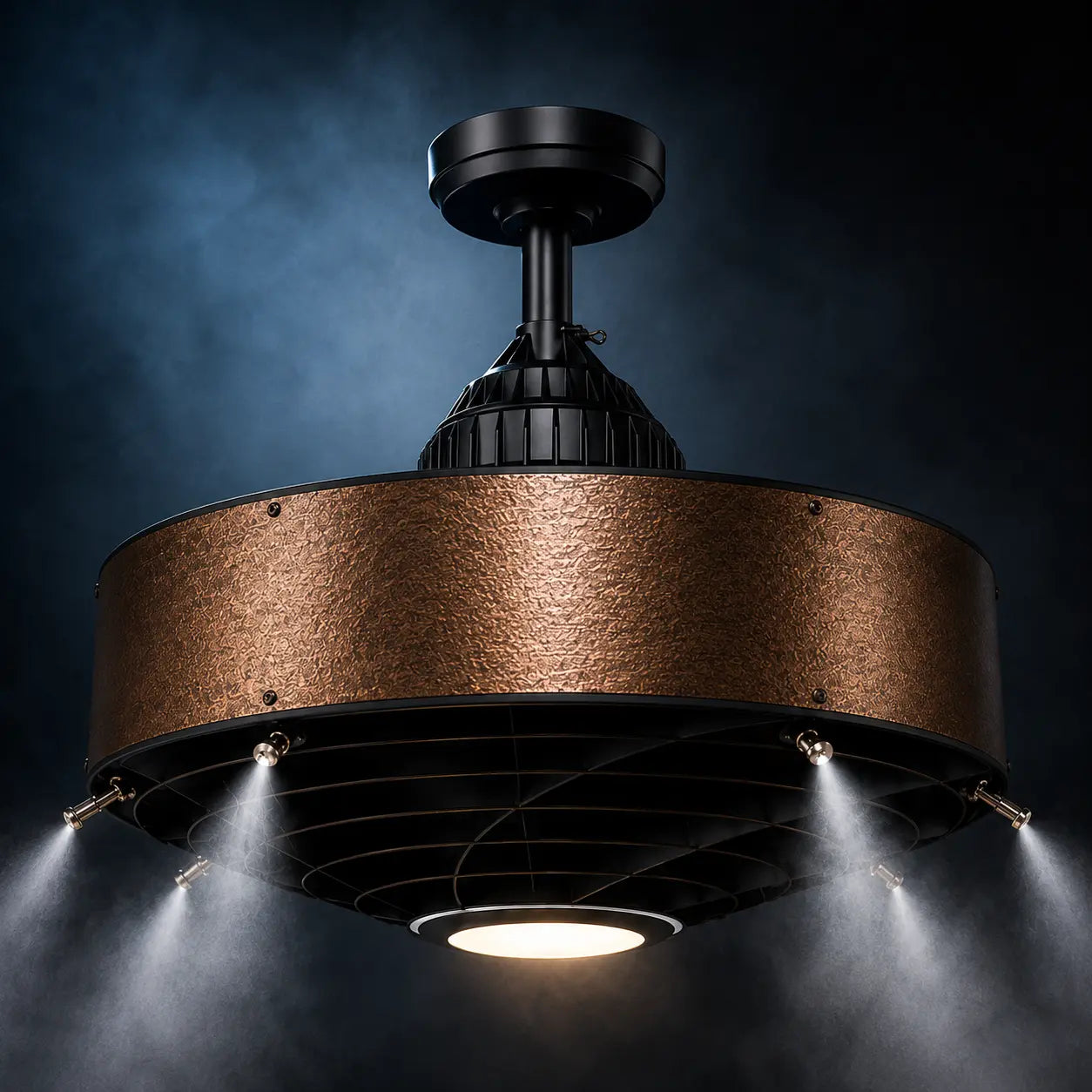

Stir up your outdoor space with the Cool-Off Pro-Mist Ceiling Misting Fan Kit. This professional-grade cooling system combines powerful airflow with high-pressure misting technology to drop temperatures up to 30°F, creating a refreshing microclimate extending 12-16 feet in diameter. Perfect for patios, pergolas, outdoor dining areas, and commercial spaces.
The Cool-Off Pro-Mist Ceiling Misting Fan Kit represents the pinnacle of outdoor cooling technology, engineered for those who demand both exceptional performance and elegant design. Whether you're enhancing a residential patio or outfitting a commercial outdoor dining area, this ceiling-mounted misting fan delivers the powerful, efficient cooling you need to reclaim your outdoor space from summer heat.
With over 20 years of outdoor cooling expertise, Cool-Off has perfected the art of combining powerful high-pressure misting technology with professional-grade fan systems. Our Pro-Mist Ceiling Fan is the result of decades of innovation, customer feedback, and real-world testing in the harshest conditions.
| Fan Diameter | 20 inches (19.69") |
| Overall Height | 21 inches from ceiling to light center (with 5" standard down rod) |
| Electrical Requirements | 120 VAC, 1.2 Amps |
| Misting Ring Capacity | Accommodates up to 8 nozzles (nozzles sold separately) |
| Water Connection | 1/4" tube connection (reducing union required for 3/8" tubing) |
| Recommended Pressure | Mid-pressure (300 PSI) to high-pressure (1000 PSI) |
| Cooling Coverage | 12-16 foot diameter microclimate |
| Noise Level | Low - whisper-quiet operation |
| Finish Options | Brushed Titanium, Black Metallic, Brown Metallic |
| Warranty | 2-year comprehensive warranty |

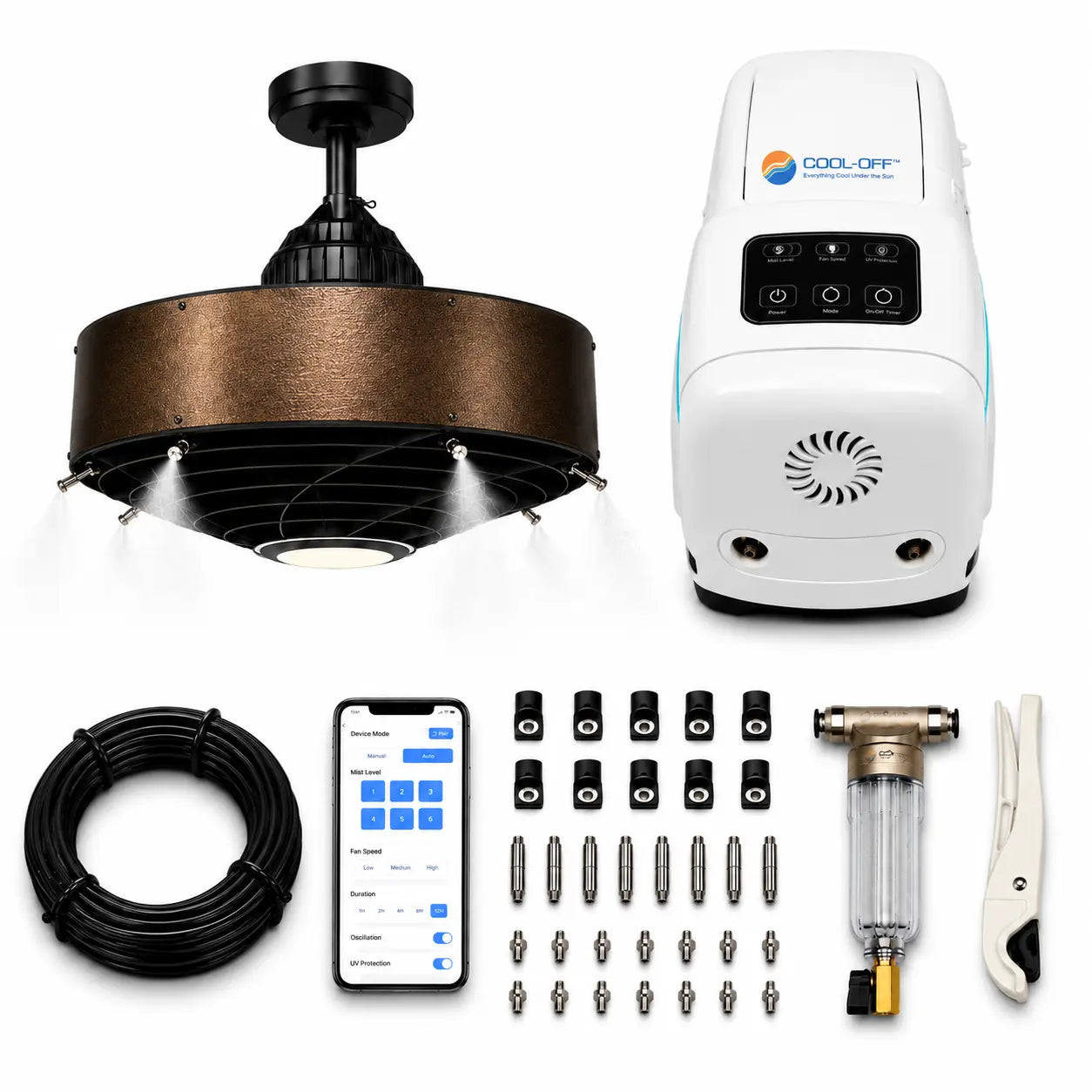

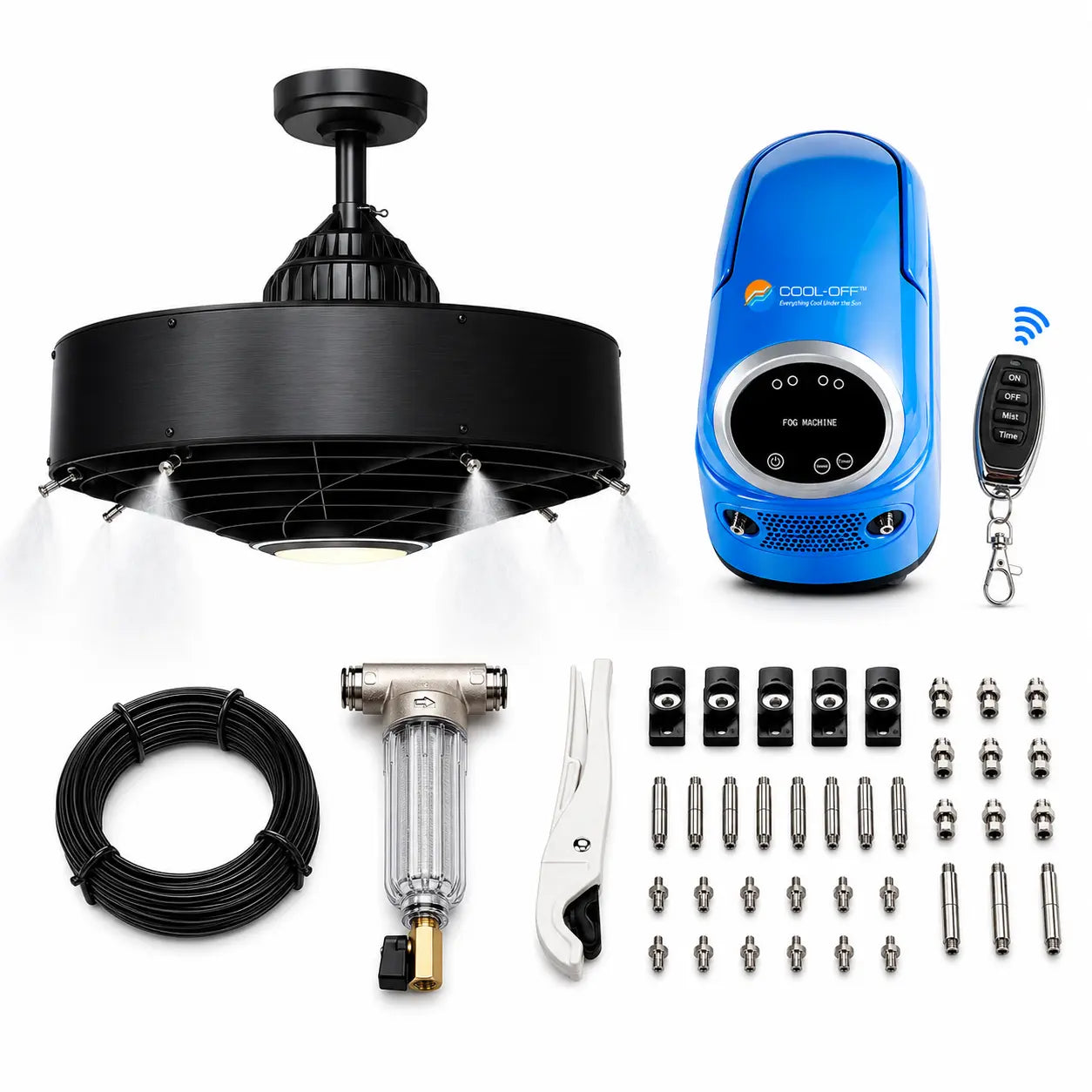

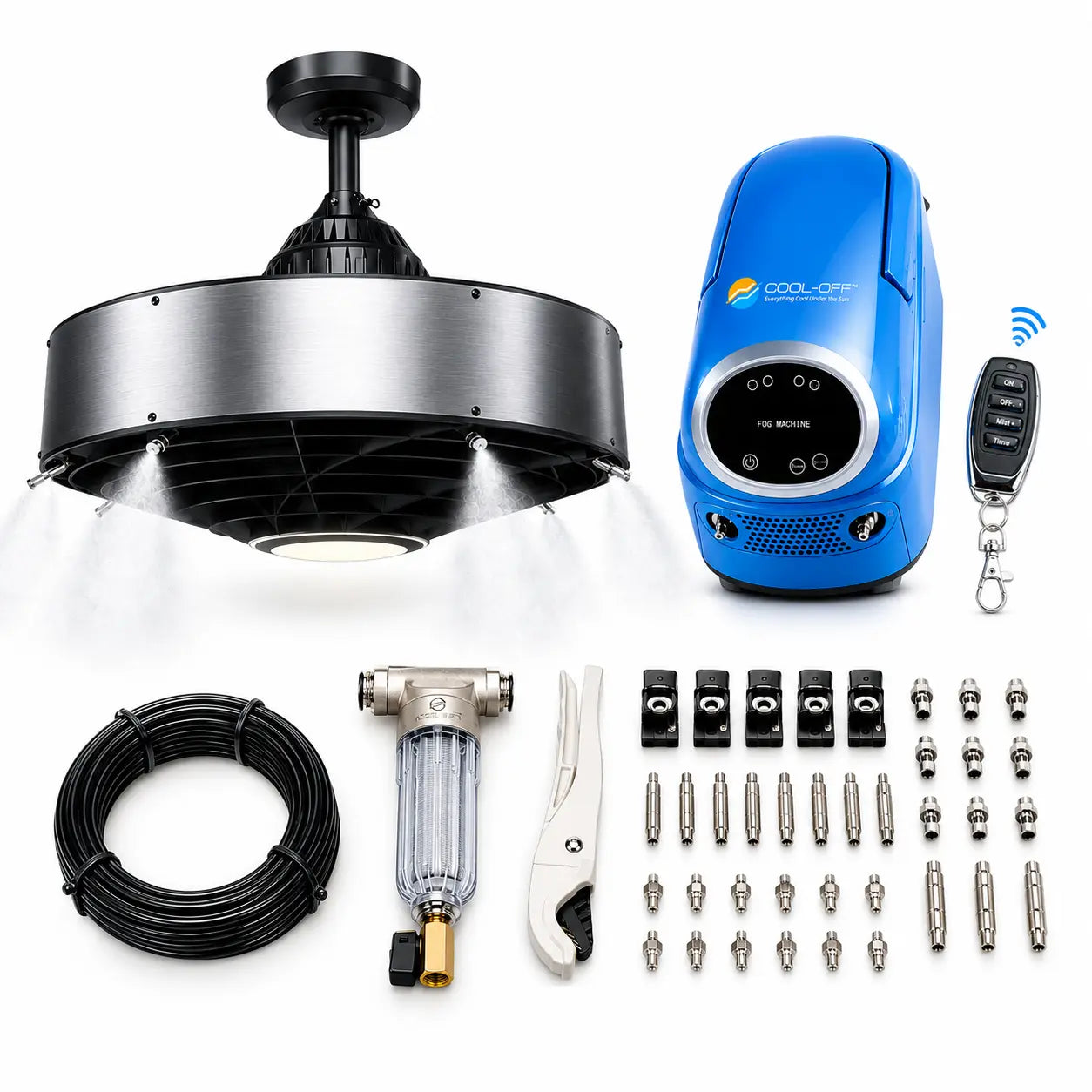

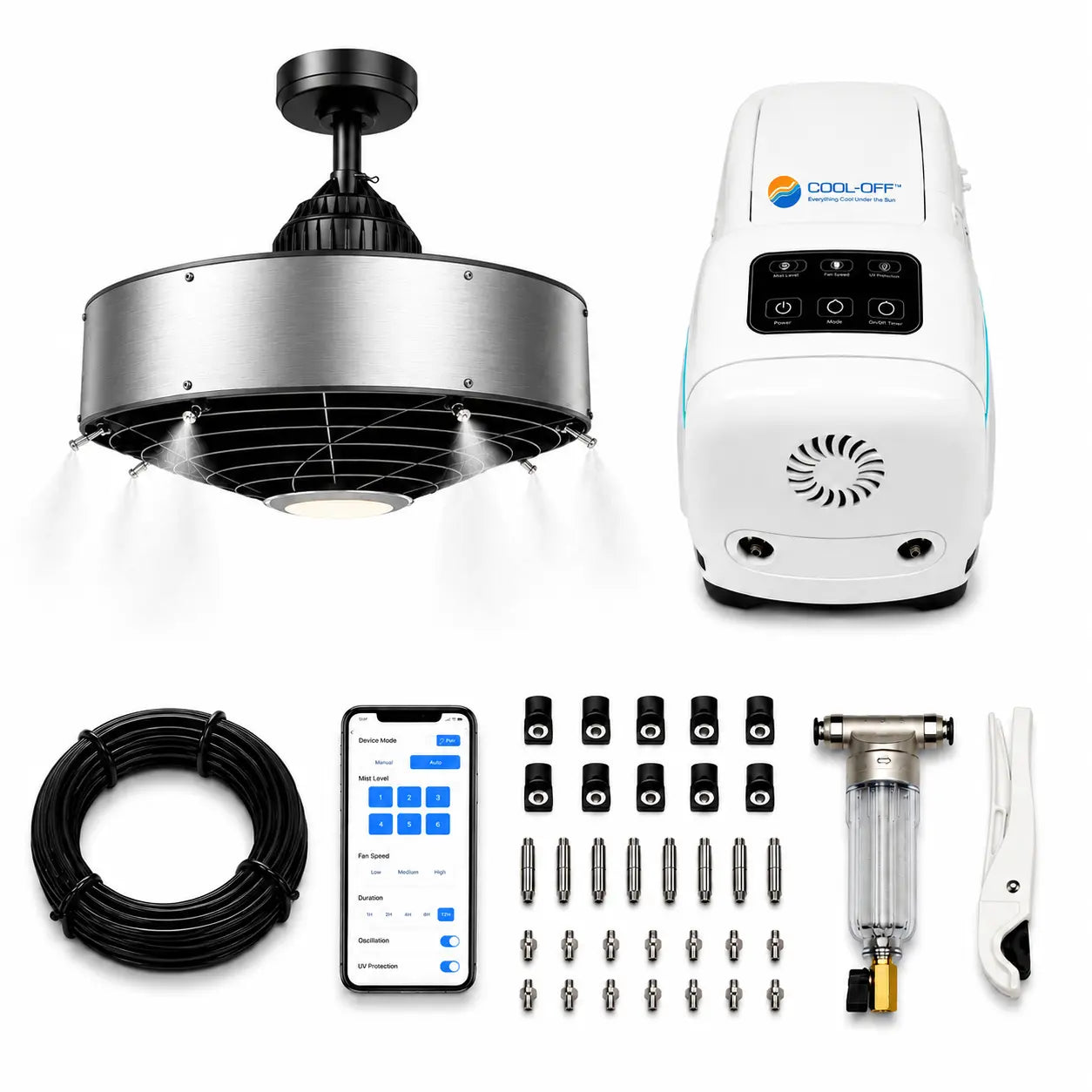

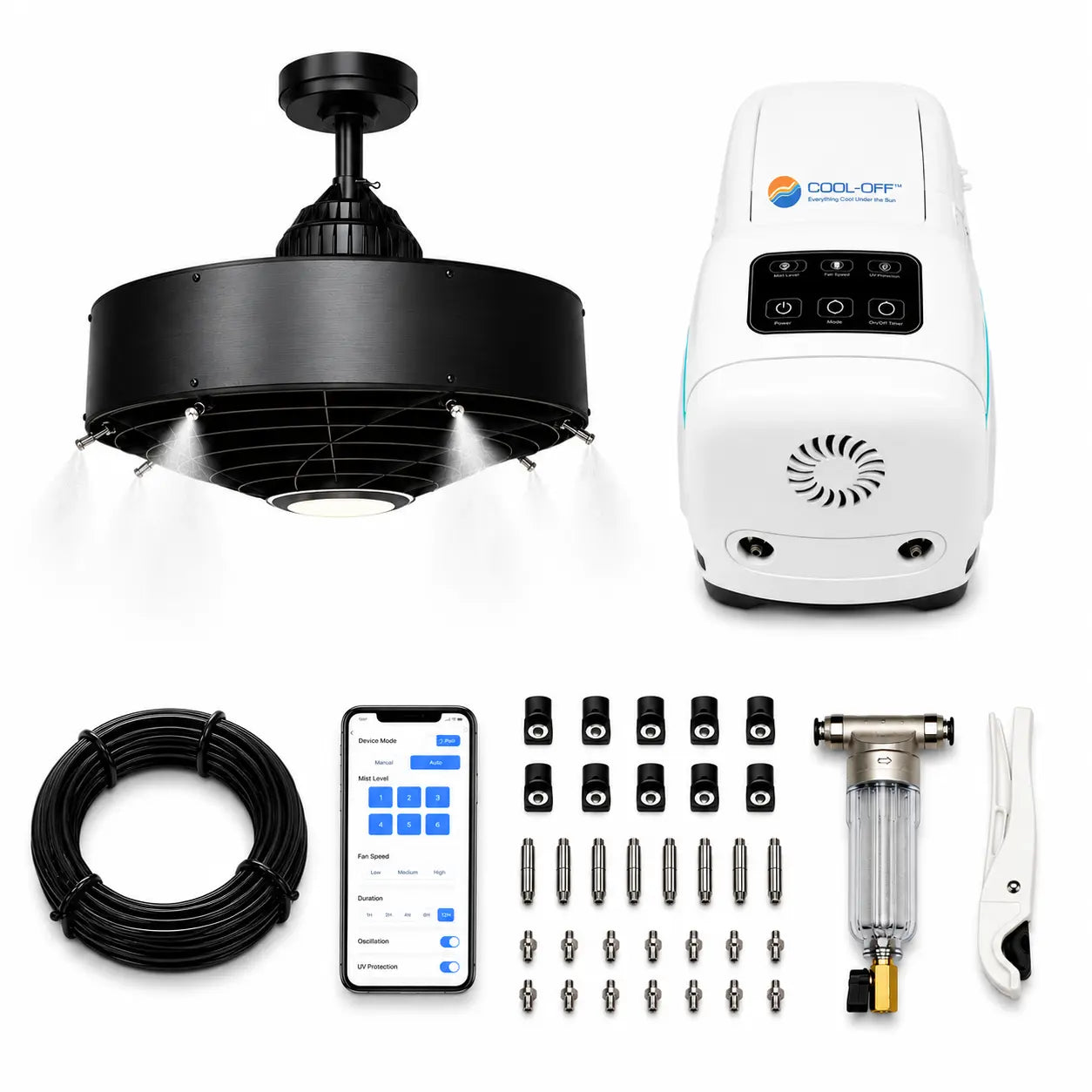

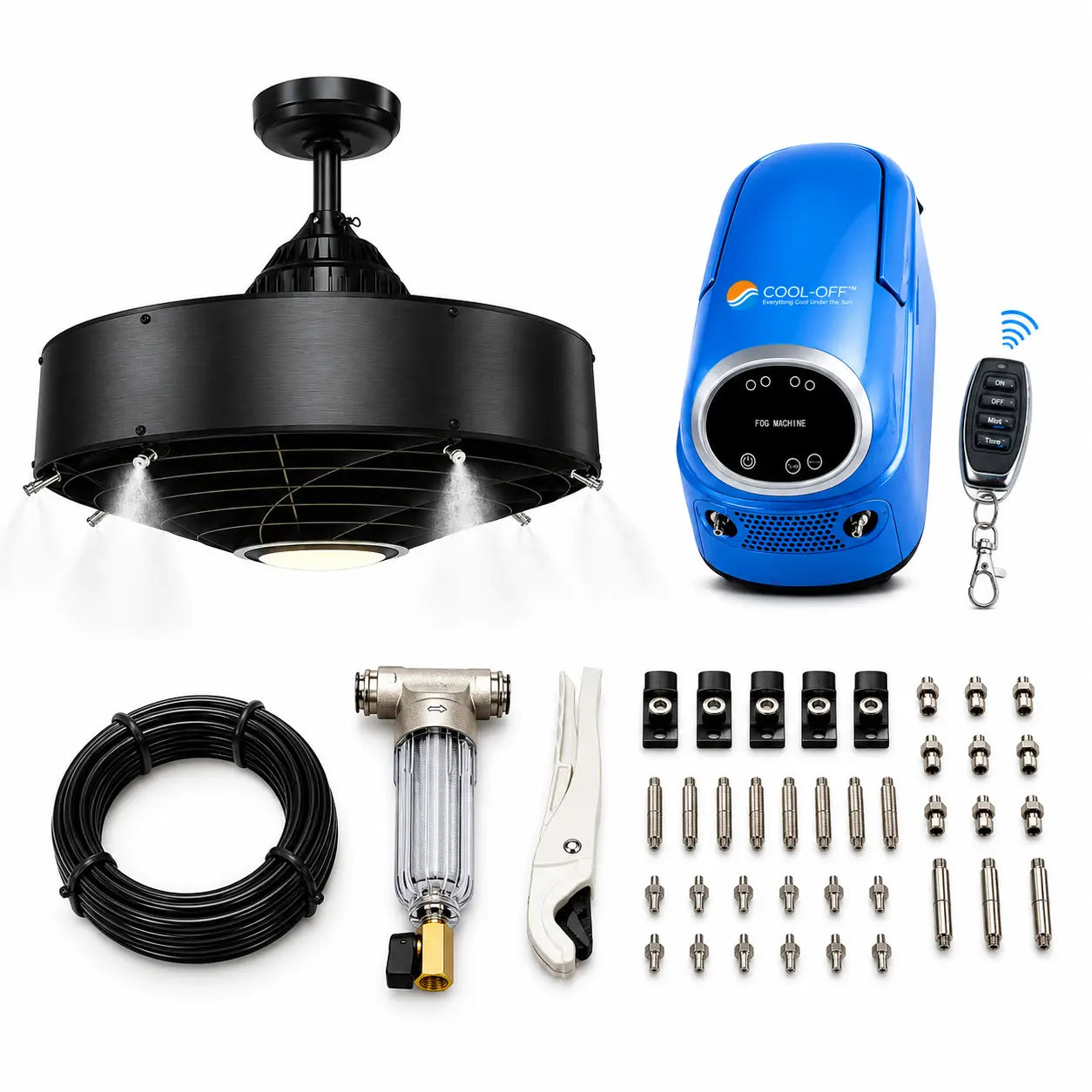

Every Pro-Mist Ceiling Fan Kit includes everything you need for a professional installation:
Installation requires three key elements: adequate electrical supply with GFCI protection, water line connection with filtration, and proper structural support capable of handling the fan's weight plus water supply. Most homeowners and businesses find professional installation worthwhile for electrical work and proper water line integration.
Pro Installation Tip: For optimal cooling performance, mount the fan between 8-12 feet high and ensure at least 18 inches of clearance from any walls or obstructions. Position fans to cover gathering areas where people naturally congregate. Visit our installation guide page for detailed instructions.
The Pro-Mist fan accommodates up to eight precision misting nozzles, sold separately. Nozzle selection depends on your mounting height, sun exposure, and desired cooling intensity:
All Cool-Off nozzles feature anti-drip technology and precision orifices machined to exacting tolerances. Unlike cheaper alternatives, our nozzles maintain consistent performance and resist clogging when paired with proper filtration
One of the most compelling advantages of ceiling misting fans is their remarkable energy efficiency compared to traditional air conditioning. According to the U.S. Department of Energy, evaporative cooling systems use approximately 75% less energy than conventional air conditioning.
The Pro-Mist Ceiling Fan operates on just 1.2 amps (approximately 144 watts), while the SM-050 pump adds another 200-300 watts depending on nozzle configuration. Total operating cost typically runs $2-3 per month in combined electricity and water usage, a fraction of what it would cost to cool the same outdoor space with portable air conditioners or HVAC extensions..
When comparing ceiling misting fans, several factors distinguish Cool-Off from competitors:
The Pro-Mist Ceiling Fan is built with commercial-grade materials designed to withstand years of outdoor exposure:
When properly configured with appropriate nozzle sizes and high-pressure operation (1000 PSI), the ultra-fine 10-micron water droplets evaporate before reaching surfaces or people. You'll feel the cooling effect without the wetness. In extremely high humidity (above 80%), you may experience slight moisture, which can be minimized by using smaller nozzles.
Water consumption is remarkably efficient. A single fan with eight .006" nozzles at 1000 PSI uses approximately 0.12 gallons per minute, or about 7 gallons per hour. This is less water than a standard garden hose uses in just 2-3 minutes, making it an environmentally responsible cooling solution.
Absolutely! The Pro-Mist fan functions as a standard ceiling fan and can be used independently. Many customers operate it as a regular fan during cooler months and activate the misting feature only during peak summer heat.
Yes, though cooling effectiveness varies with humidity levels. In humid environments, high-pressure systems (1000 PSI) are essential for creating droplets fine enough to evaporate. While dry climates may see 25-30°F temperature drops, humid regions typically experience 10-15°F reduction, still significant for outdoor comfort.
The fan requires a standard 120V outlet with GFCI protection for outdoor safety. Total electrical load for fan plus pump is under 2 amps, well within normal circuit capacity. Professional electrical installation is recommended to ensure proper GFCI protection and weatherproof connections.
Installation complexity depends on existing infrastructure. If you have an electrical outlet at the mounting location and easy access to a water supply with appropriate pressure, DIY installation is feasible for skilled homeowners. Most customers prefer professional installation to ensure proper electrical work, water line connection with filtration, and optimal system performance. Installation typically costs $300-$1,500 depending on your specific situation.
Cool-Off provides a comprehensive 2-year warranty covering manufacturing defects in materials and workmanship. This includes the fan motor, electrical components, misting ring, and structural elements. Normal wear items like nozzles and filters are excluded. Extended warranty options are available at purchase.

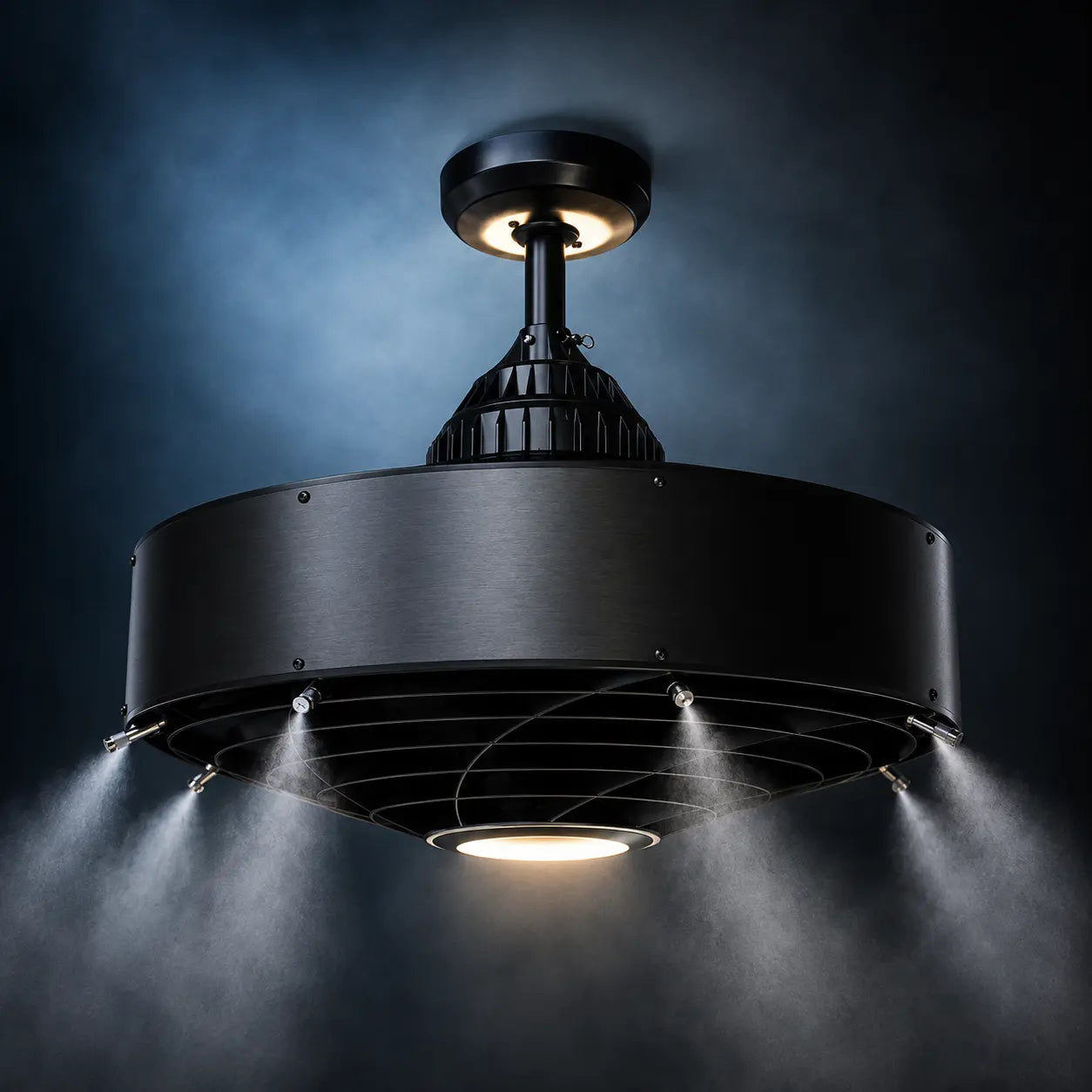

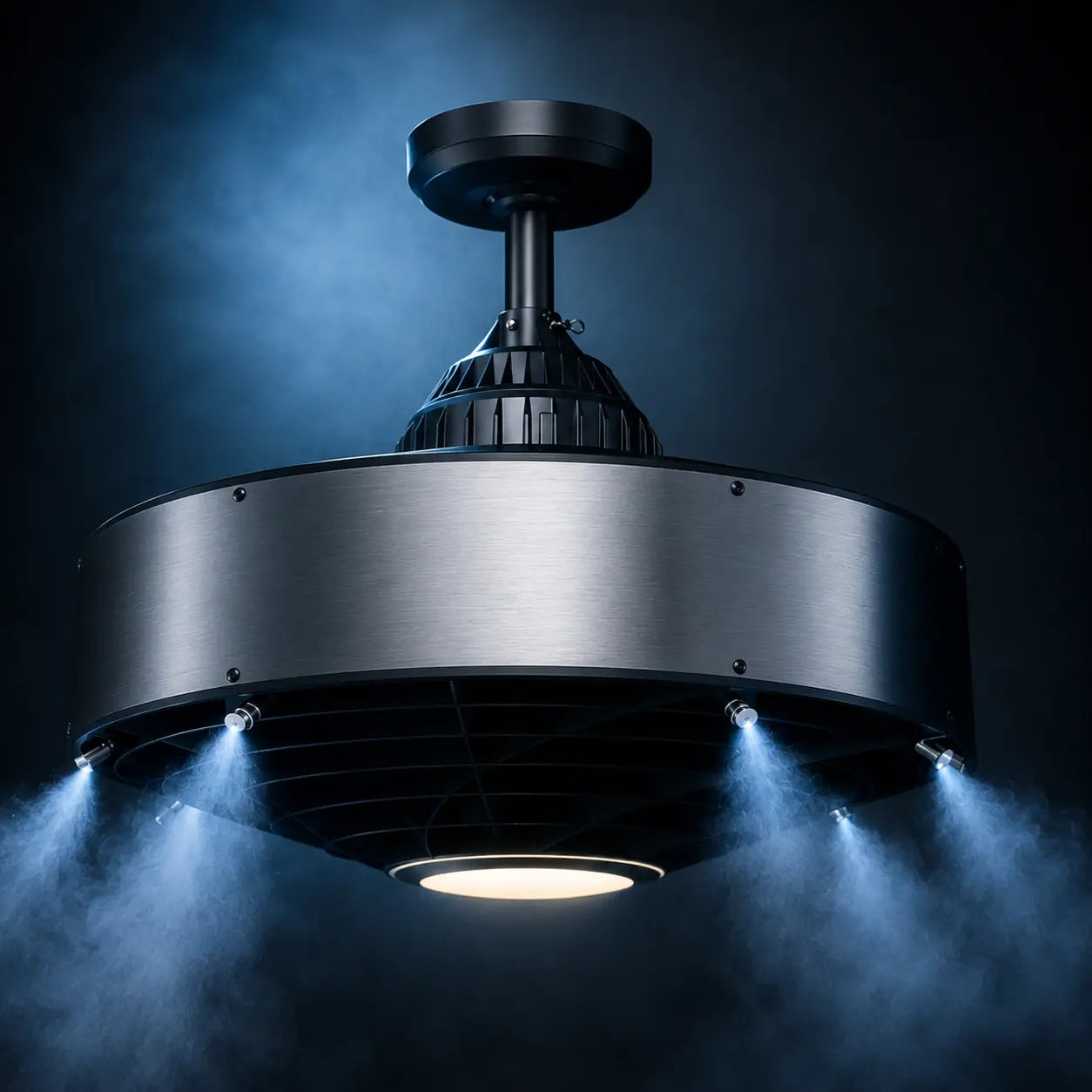

Unlike traditional ceiling fans that simply circulate hot air, the Pro-Mist Ceiling Misting Fan uses evaporative cooling principles to genuinely lower air temperature. When water is atomized into ultra-fine droplets of 10 microns or less and dispersed through high-pressure nozzles, it rapidly evaporates, absorbing heat energy from the surrounding air. This process, known as "flash evaporation," can reduce temperatures by up to 30°F depending on your climate conditions.
The integrated fan blades then circulate this cooled, refreshed air throughout your space, creating a comfortable microclimate that extends 12 to 16 feet in diameter from the center of the fan. This means you're not just moving hot air around, you're actively lowering the temperature in the areas where people congregate.
