Get cooler, drier coverage without going full pro-pump. Mid-pressure misting fans use a compact booster pump (around 200 PSI) to create a finer mist than low pressure—reducing dampness and expanding coverage—while staying simpler and more affordable than high-pressure systems. Ideal for patios, cafés, event zones, and busy backyards that need real performance without the complexity.
Finer mist, less dampness — noticeably drier than low-pressure.
Stronger coverage — cools broader zones and walkways.
Cost-effective — better performance without high-pressure costs.
Flexible installs — fan-mounted rings or short line-runs.
Quiet operation — efficient pumps; conversation-friendly.
Best for: patios and pergolas, outdoor dining, event spaces, sideline cooling, garage/work zones, and homeowners who want reliable, set-and-forget comfort.
A mid-pressure booster pump raises water pressure to ~200 PSI and feeds a misting ring (or short mist line) with multiple fine-orifice nozzles. The fan projects the mist into the airflow, where it evaporates quickly—pulling heat from the air and cooling people throughout the target zone.
Typical pressure: ≈200 PSI (from a dedicated booster pump)
Nozzles: 8–12+ per ring (smaller orifices = finer mist)
Coverage: zones and walkways, not just a tight seating area
Moisture: minimal when aimed overhead and across airflow
Benefits
Finer mist → more evaporation and less surface dampness
Wider, more even coverage than low-pressure
Great balance of performance, cost, and complexity
Versatile: retrofit rings, complete fan kits, or partial line systems
Scales up easily: add a second fan or more nozzles as needs grow
Trade-offs
Requires a booster pump and power outlet
Slightly more install time vs. basic low-pressure
In very humid climates, evaporation slows (still drier than low)

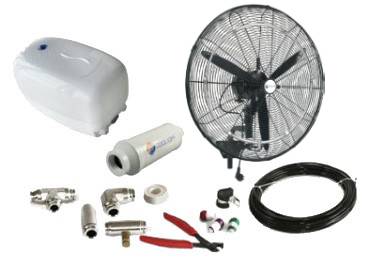

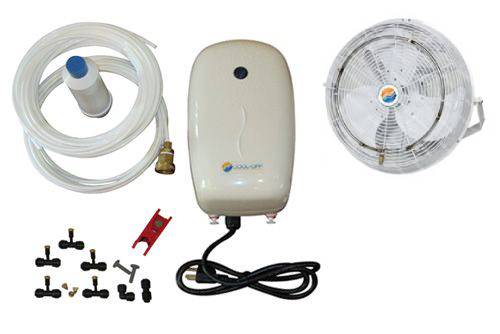

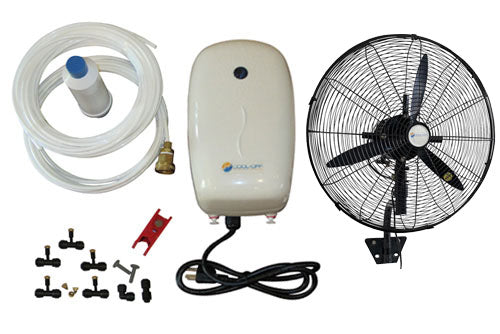

Outdoor-rated fan (oscillating or fixed)
Mid-pressure misting ring (stainless or composite)
Booster pump (≈200 PSI) with mount and power cord
Tubing & fittings (nylon or stainless)
Nozzles + spares and O-rings
Sediment filter and recommended quick-connects
Optional timer, anti-drip valves, hose-to-pump adapters
Match your setup to space size, sun exposure, and airflow.
| Space / Condition | Recommended Setup | Notes |
|---|---|---|
| 150–300 sq ft patio | 18–20″ fan + 8–10-nozzle ring + booster pump | Mount fan 7–10 ft from seating |
| 300–500 sq ft dining | 20–26″ fan + 10–12-nozzle ring | Consider 2 fans for even coverage |
| Walkway / queue lines | 2 fans + opposing airflow | Aim above head height; slight overlap |
| Full sun, low shade | Larger fan + more nozzles | Add shade sails to boost effectiveness |
| Humid climate | Smaller-orifice nozzles | Higher fan speed; aim above guests |
| Mobile / events | Stand fan + quick-connects | Packs and deploys quickly |
Pro tip: If you routinely cool very large areas or want near-vapor mist with minimal wetness, step up to high-pressure (1000 PSI). If budget or power access is limited, low-pressure remains a solid starter.
Plan the run — locate pump, water, power (GFCI), and fan position.
Mount the ring — center on the fan grill; space nozzles evenly.
Plumb the pump — hose bib → filter → pump → ring/line.
Flush lines — run water (no nozzles) to clear debris; then install nozzles.
Power up — verify pump primes; check for leaks at fittings.
Aim & tune — fan on high; open water; aim slightly above and downwind of people. Adjust nozzle count/orifice for climate.
Nice-to-haves: quick-connects, pressure gauge, timer, anti-drip valves, vibration pads under the pump.
Favor smaller-orifice nozzles in humid regions
Aim overhead; let mist drift through the zone, not directly at guests
Use oscillation or multiple fans for gentle, even coverage
Increase airflow and shade to amplify perceived cooling
Start with a lean nozzle count; add as needed after testing
Filter first — replace sediment filters per season/use hours
Nozzle care — soak in 1:1 vinegar if flow or pattern degrades
Pump checks — inspect fittings, listen for cavitation, verify prime
Seasonal storage — drain lines; protect pump from freezing
Annual refresh — replace O-rings; inspect sun-exposed tubing
| Feature | Low (40–80 PSI) | Mid (≈200 PSI) | High (1000 PSI) |
|---|---|---|---|
| Mist fineness | Larger droplets | Fine mist | Ultra-fine, near-vapor |
| Wetness risk | Higher at close range | Low–moderate | Very low |
| Coverage | Spot cooling | Zones / small areas | Large / commercial |
| Hardware | Hose + ring | Booster pump + ring/line | Pro pump + ring/line |
| Cost | Lowest | Moderate | Highest |
| Ideal use | DIY, small patios | Patios, cafés, events | Restaurants, resorts, warehouses |

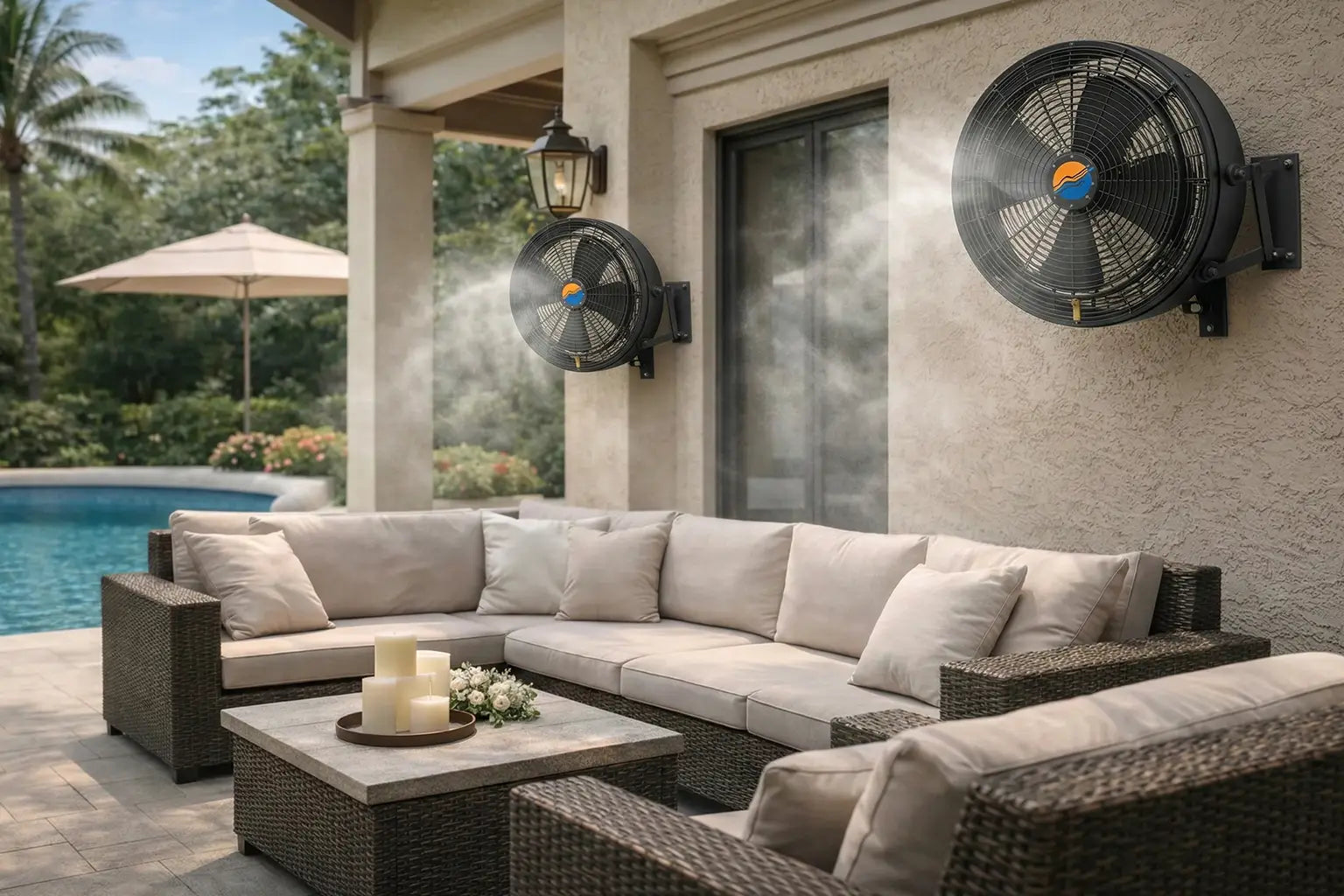

Patio dining & cafés — more tables stay comfortable, longer
Backyards & pergolas — party-ready cooling without complex installs
Event venues & queues — steady, even relief across walkways
Garages & shop bays — reduce heat stress around work zones
Sports & sidelines — mobile setups with real performance
Do I need a pump for mid-pressure?
Yes. A booster pump raises pressure to ~200 PSI for finer mist and wider coverage.
How does mid-pressure compare to high-pressure for wetness?
Mid-pressure is drier than low-pressure but not as dry as high-pressure. Proper aiming and nozzle choice keep surfaces comfortable.
Can I retrofit an existing fan?
Absolutely. Add a mid-pressure ring and booster pump, then plumb with filtered water.
Will it work in humid climates?
Yes—use smaller-orifice nozzles, aim overhead, and maximize airflow. Evaporation slows in high humidity but still provides relief.
What maintenance is required?
Replace filters, clean/soak nozzles, check fittings, and protect the pump from freezing temps.
Can I expand later?
Yes. Add fans, extend short runs, or move up to high-pressure for near-vapor mist.
Is power consumption high?
Booster pumps are efficient; total draw is modest compared to A/C or large evaporative coolers.
Upgrade to mid-pressure misting fans for a finer mist, wider coverage, and dependable comfort—without the complexity of high-pressure systems.
| Feature | Low (40–80 PSI) | Mid (≈200 PSI) | High (1000 PSI) |
|---|---|---|---|
| Mist fineness | Larger droplets | Fine mist | Ultra-fine, near-vapor |
| Wetness risk | High at close range | Low to moderate | Very low with good aim |
| Coverage | Spot cooling | Zones / small areas | Large / commercial |
| Hardware | Hose and ring | Booster pump + ring | Pro pump + ring or line |
| Cost | Lowest | Moderate | Highest |
| Ideal use | DIY, small patios | Patios, cafés, events | Restaurants, resorts, warehouses |
