Transform Your Patio with Outdoor Misting Fan Wall Mount

Imagine your scorching patio transformed into a refreshing oasis once again. An outdoor misting fan wall mount delivers instant relief, turning unbearable heat into comfortable outdoor living.

We combine powerful airflow with fine mist for evaporative cooling that lowers temperatures by 20-30°F, as affirmed by the U.S. Department of Energy's guidance on evaporative coolers. Explore our misting fans compatible with misting fan rings for customizable mist output. The wall-mount design saves valuable floor space on patios.

Easy misting fan installation follows three steps: 1) Select a mount location 8-10ft high; 2) Secure the bracket to wall studs; 3) Attach the fan and connect misting lines. It uses 75% less electricity than AC and excels in dry climates under 50% humidity.

Ready to upgrade? Explore our products today for your perfect patio setup.

Essential Preparations Before Installation

Once you've chosen your outdoor misting fan wall mount, we recommend essential preparations to guarantee success. These steps cover site evaluation, utility verification, tools, and safety, aligning with authoritative U.S. Department of Energy energy-saving recommendations for evaporative coolers in low-humidity areas like Las Vegas.

Assess the installation site for strong airflow, partial shade, and low humidity, as U.S. Department of Energy guidelines emphasize ventilation for optimal evaporative cooling performance. Verify water supply with 20-40 PSI pressure from a clean source and hose bibb within 25 feet. For electrical needs, ensure a GFCI-protected 120V outlet within 6 feet; avoid extension cords and confirm proper grounding. Our misting systems pair well with compatible misting fan rings for enhanced coverage.

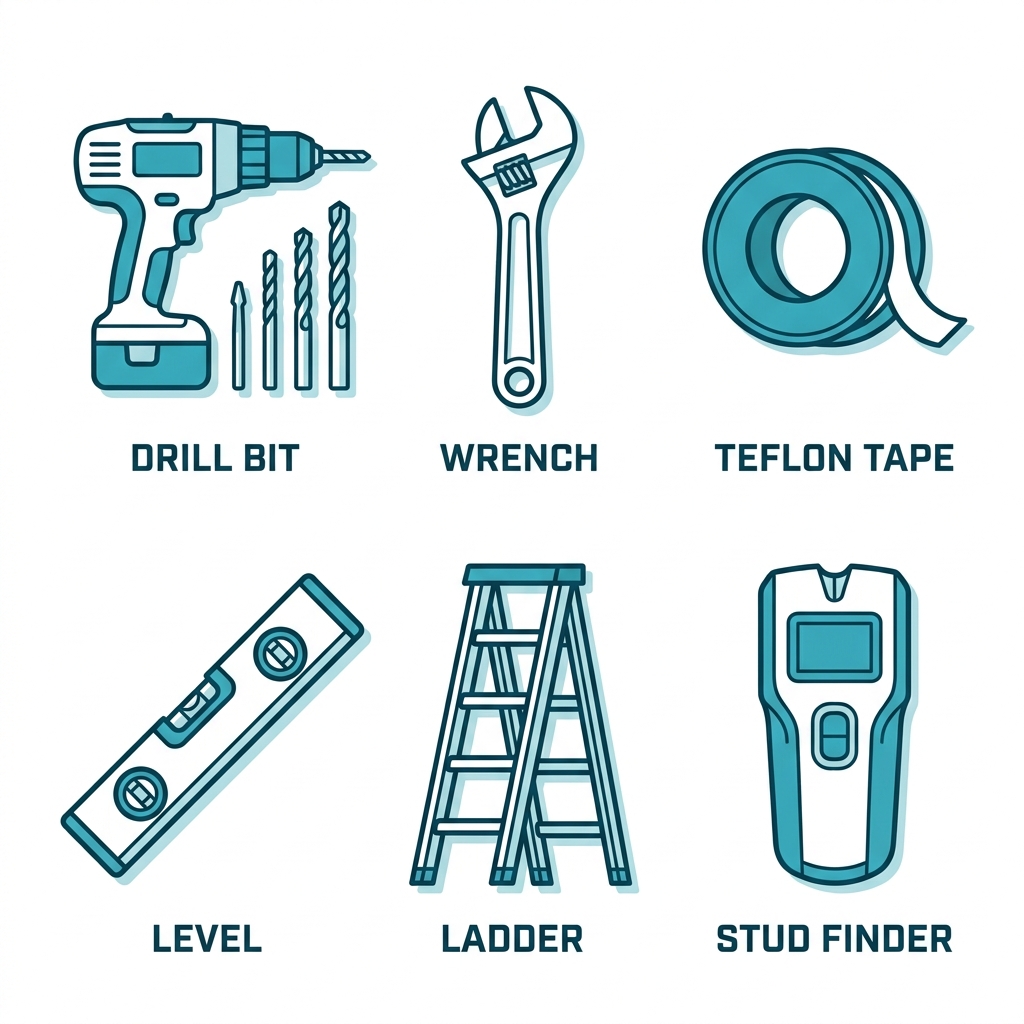

Essential preparation tools for outdoor misting fan installation

Gather these tools: drill with masonry bits for wall mounting, adjustable wrench, Teflon tape, level, and ladder. Safety first: Confirm a stable mounting surface, review local building codes, and wear PPE like gloves and eye protection.

With preparations complete including site, utilities, tools, and safety proceed to misting fan installation steps in the next section for a refreshing setup.

Select the Perfect Mounting Location

With your misting fan chosen, now select the perfect spot for your outdoor misting fan wall mount. Optimal placement ensures even cooling coverage, safety, and efficiency for outdoor spaces like patios.

Here are key mounting tips:

• Mount the outdoor misting fan wall mount at 7-8 feet high to disperse mist evenly without direct head contact.
• Position 8-10 feet from seating areas for effective cooling radius in gathering spots.
• Avoid direct wind paths or full sun exposure to prevent mist blow-off or nozzle clogging from debris.
• Consider oscillating misting fan low pressure models; they excel in wall-mounted outdoor setups with adjustable patterns using misting fan rings.
• Choose sturdy, weather-resistant walls accessible for misting fan installation and maintenance.

Prioritize safety by avoiding electrical hazards. Once located, proceed to secure mounting with proper misting fan installation techniques.

Secure the Wall Bracket Firmly

With the bracket positioned correctly from the previous step, securely mounting your outdoor misting fan wall mount ensures stability and prevents accidents during use. We prioritize safety in every misting fan installation.

Follow these steps:

1. Safety first: Turn off power to nearby electrical components. Wear gloves and safety glasses.
2. Use a stud finder to locate at least two wall studs. Mark positions with a pencil.
3. Drill pilot holes (e.g., 3/16-inch for wood studs), avoiding over-drilling.
4. For wood studs, use 3-inch #10 lag screws; for concrete/brick, employ toggle bolts or masonry anchors.
5. Hand-tighten all screws first, then secure to 20-25 in-lbs with a torque wrench or screwdriver.
6. Check levelness with a bubble level and adjust as needed.
7. Test firmness: Apply gentle outward pull and shake; ensure no movement.

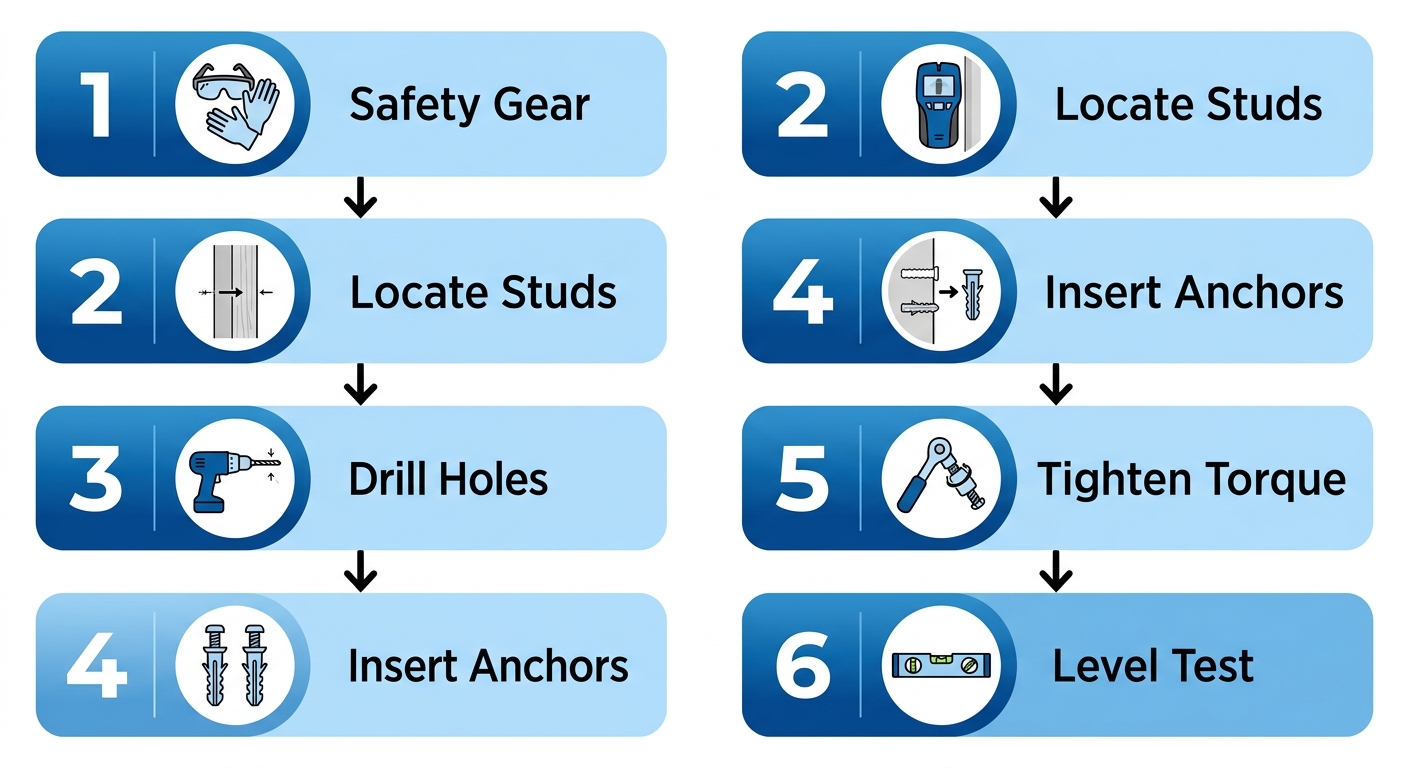

Step-by-step wall bracket securing process for misting fan installation

Verify your outdoor misting fan wall mount setup. Once secure, proceed to attach the fan assembly and misting fan rings.

Attach the Misting Fan to Bracket

With the bracket securely installed on the wall, we guide you through attaching the misting fan for your high pressure misting fans using this outdoor misting fan wall mount. Ensure compatibility with misting fan rings before proceeding.

Safety Precautions:

• Confirm the bracket is firmly secured to the wall.
• Disconnect power to the fan.
• Wear protective gloves.

Step 1: Position the misting fan's rear mounting plate to align exactly with the four holes on the bracket for the outdoor misting fan wall mount.

Step 2: Insert the provided M6 bolts through the fan's mounting holes from the front, adding washers if specified.

Step 3: From behind the bracket, secure the bolts with lock nuts. Hand-tighten first, then use a wrench for 15-20 Nm torque.

Step 4: Gently shake the fan to verify the attachment; it must not wobble.

Step 5: Perform a final visual check for even alignment, following best practices in misting fan installation.

Avoid over-tightening to prevent bracket damage. Once attached, proceed to connect the misting lines.

Install Misting Fan Rings

Once your fan is chosen, add misting rings for superior cooling—here's how. misting fan rings enhance cooling for outdoor misting fan wall mount setups, turning patios into refreshing oases with our easy DIY misting kit. You'll have it done in 15 minutes.

Tools Needed

• Adjustable wrench
• Teflon tape
• Misting ring kit
• Zip ties
• Ladder
• Safety goggles

Safety first: Always power off the fan and unplug it to avoid electrical hazards.

Installation Steps

1. Power off the fan and detach blades if needed for access.
2. Secure the misting fan rings to the fan grille using provided clips or zip ties.
3. Connect misting lines to your water source, applying Teflon tape to fittings.
4. Mount the fan using your outdoor misting fan wall mount bracket for stable positioning.
5. Test for leaks at low pressure before full use.

Warning: Limit water pressure to max 40 PSI to prevent damage.

For misting fan installation troubleshooting, leaks mean re-tighten fittings; uneven mist suggests clogged nozzles—clean with vinegar. After installation, follow these care tips to keep your setup misting perfectly.

Connect Water Supply Line

With your outdoor cooling solutions like an outdoor misting fan wall mount securely mounted, connecting the water supply line ensures effective misting fan installation. We prioritize safety: turn off the main water supply and relieve pressure before starting, following U.S. Department of Energy authoritative government installation and safety guidelines for evaporative coolers.

1. Select the correct hose adapter compatible with 3/8-inch or 1/2-inch water lines for standard evaporative cooler or misting fan rings requirements.
2. Wrap threads with Teflon tape clockwise, then hand-tighten the connection and use a wrench for an additional quarter-turn without over-tightening.
3. Install an inline shut-off valve for easy maintenance on wall-mounted outdoor misting fans.
4. Route the line away from electrical components and secure with zip ties to prevent kinks in outdoor settings.

Slowly turn on the water to test at 40-60 PSI, checking for leaks. If leaks occur, disassemble, add more tape, and re-tighten. Once water is connected and tested, proceed to power setup.

Wire Electrical Connection Safely

With your outdoor misting fan wall mount secured, prioritize safety in wiring electrical connections for your misting fan installation. DANGER: Disconnect power immediately at the circuit breaker. Apply lock out/tag out procedures. Test for voltage using a non-contact tester before touching any wires.

Gather these essential tools: wire strippers for 14-18 AWG, waterproof wire nuts (yellow or orange size), screwdriver, and multimeter.

Follow these numbered steps for secure connections:

1. Match wires precisely: black (hot) to black, white (neutral) to white, green or bare (ground) to green or bare on the misting fan rings and fan leads.
2. Strip 1 inch of insulation, twist ends clockwise tightly, and secure with waterproof nuts.
3. Protect for outdoors: plug into a GFCI outlet (ground fault circuit interrupter), use an IP65-rated junction box, and seal with silicone.

Verify with multimeter continuity test (resistance under 1 ohm). WARNING: Avoid aluminum wiring or 14 AWG wire for loads over 5A. After wiring, proceed to system testing.

Test and Adjust Operation

With your misting fan installation complete, test the outdoor misting fan wall mount to verify smooth operation and optimize cooling. This ensures energy-efficient performance and longevity for wall-mounted outdoor misting fans.

1. Power On and Check Activation – Power on the unit. Confirm the outdoor misting fan wall mount activates without unusual noises or vibrations.
2. Inspect Misting Fan Rings for Leaks Run at full mist for 2-3 minutes. Check all misting fan rings and tubing connections for leaks.
3. Adjust Nozzle Settings Turn each nozzle clockwise to reduce flow or counterclockwise to increase for ideal droplet size.
4. Calibrate Fan Speed Use the control panel or remote to balance fan speed with mist dispersion for maximum cooling efficiency.
5. Troubleshoot and Final Test For weak mist, clean nozzles; for uneven spray, realign misting fan rings. Run a 5-minute full-system test. If issues persist, check our misting products order returns policy for support.

Always unplug before adjustments. Regular testing prevents issues—see our maintenance guide next.

Common Issues and Solutions

Despite correct misting fan installation, common issues can still emerge in evaporative coolers and misting systems—here's how we at Cool-Off help you spot and solve them quickly. From mineral buildup clogging misting fan rings to instability in outdoor misting fan wall mount setups, these fixes restore performance fast.

Issue 1: Mineral Deposits from Hard Water Clogged pads and nozzles reduce mist output, causing weak cooling. Symptoms include visible white scale and diminished spray, as noted in U.S. Department of Energy guidelines on water quality issues.

Solution:

1. 1. Unplug the unit. 2. Rinse pads weekly with a vinegar-water mix. 3. Install a water softener. 4. Replace pads annually.

Issue 2: Mold and Bacteria Growth Standing water breeds mold, leading to odors and health risks.

Solution:

1. 1. Drain daily. 2. Apply antimicrobial treatments. 3. Run fan dry before storage. 4. Clean reservoirs thoroughly.

Issue 3: Pump or Fan Motor Failures Debris causes overheating and shutdowns; check U.S. Department of Energy advice on pump operation.

Solution:

1. 1. Unplug and inspect for blockages. 2. Lubricate moving parts per schedule. 3. Clear debris from intakes. 4. Test in short bursts.

Issue 4: Inadequate Cooling or Airflow Poor sizing or dirty pads result in warm mist; airflow feels stagnant.

Solution:

1. 1. Verify unit sizing for space. 2. Check and adjust airflow vents. 3. Replace saturated pads. 4. Ensure proper window venting.

Issue 5: Wall Mount Instability If your outdoor misting fan wall mount wobbles during use, vibrations loosen anchors, risking falls in outdoor settings.

Solution:

1. 1. Unplug unit. 2. Tighten all bolts and anchors. 3. Check for level mounting. 4. Add vibration dampeners.

Preventive Maintenance Checklist:

• Drain and clean weekly.
• Inspect pumps monthly.
• Use clean water—key to longevity.
• Store dry in winter.

Don't worry—these quick fixes keep systems running smoothly. Implementing them routinely ties into broader upkeep strategies detailed next.

Enjoy Cool Comfort with Proper Maintenance

After completing misting fan installation, we recommend these routines for your outdoor misting fan wall mount. Just 5 minutes of weekly maintenance prevents 90% of misting fan failures, ensuring reliable cool comfort.

• Clean misting fan rings weekly: Turn off power, disassemble rings, soak in vinegar-water solution for 30 minutes, rinse with hose, and dry completely before reinstalling. Clean water is key.
• Monthly checks for misting fan installation: Inspect brackets for rust or looseness, tighten bolts to 20-30 Nm torque, and test spray pattern for even mist.
• Seasonal prep for outdoor misting fan wall mount: Drain water lines before winter, store rings indoors to avoid freezing damage.

Proper care extends fan life by 2+ years and maintains 20% cooler airflow. If issues persist despite maintenance, see our troubleshooting guide. Need help? Our dedicated team are here to help.
